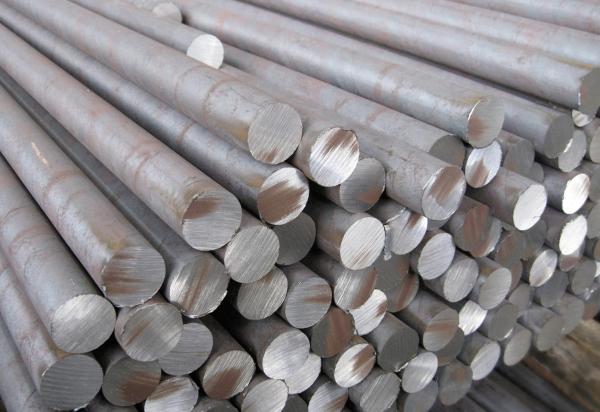

GB/T 30CrMnSiA Alloy Round Steel Bar
Standard
ASTM A213; ASTM A335; ASTM A519; ASTM A106; ASTM A29; JIS G3462;
JIS G3458; JIS G3444; JIS G4053; DIN17175; DIN1629; DIN2391;
GB/9948, GB/6479; GB/T8162; GB/T8163; GB/T 3077; EN 10297; EN
10084; EN 10083; ISO 683/11; IOS 683/10; IOS 683/1; etc.
Chemical Requirements, Composition, %
GB/T 30CrMnSiA Alloy Round Steel Bars
Alloy structural steel is a kind of steel which is used as
mechanical parts and various engineering components,whichcontains
one or more alloy elements.
- 30CrMnSiA is a medium carbon with high strength and poor welding
performance.
- 30CrMnSiA has high strength and sufficient toughness after
quenching and tempering, and hardenability is also good. After
quenching and tempering, the material can be used as a grinding
wheel shaft, gears and sprockets.
- 30CrMnSiA has good processability, small processing deformation and
good fatigue resistance. For shaft and piston parts and so on. It
is used in various special wear parts such as automobiles and
airplanes.
- The material is darker in color and galvanized can add aesthetics
and rust.
- EAF+(ESR) or EAF+LF+VD+(ESR)
- HOT rolled; Cold rolled; Forged; Cold Drawn
- Heat Treatment: Untreated, Annealing, N+T, Q+T
- Smelting: EAF+LF+VD (+ESR)
- Surface Finish: Black, Rough Machined, Peeled, Turned or upon
request
- UT 100% passed
- Cutting service provided
- Third Party inspection is acceptable (SGS, BV etc.)
Standard
ASTM A213; ASTM A335; ASTM A519; ASTM A106; ASTM A29; JIS G3462;
JIS G3458; JIS G3444; JIS G4053; DIN17175; DIN1629; DIN2391;
GB/9948, GB/6479; GB/T8162; GB/T8163; GB/T 3077; EN 10297; EN
10084; EN 10083; ISO 683/11; IOS 683/10; IOS 683/1; etc.
Chemical Requirements, Composition, %
| Grade | C | Si | Mn | P | S | Ni | Cr | Cu |
| 30CrMnSiA | 0.28- 0.34 | 0.90- 1.20 | 0.80- 1.10 | 0.025 max | 0.025 max | ≤ 0.40 | 0.80- 1.10 | ≤ 0.25 |
Mechanical properties
| Yield strength σs/MPa (>=) | Tensile strength σb/MPa (>=) | Elongation δ5/% (>=) | Reduction of area ψ/% (>=) | Impact absorbing energy Aku2/J (>=) | Hardness HBS 100/3000 max |
| 835 | 1080 | 10 | 45 | 39 | 229 |
Production Inspection
Our heat treatment center with complete product testing equipment,
for instance: the scanning electron micro sconezz(SEM).the
transmission electron microscope(TEM)the material testing machine.
the large-type metallurgical microscope,the endurance testing
machine,the IAS-4 image analyzer, the American ARL direct- reading
spectrometer, the American the electric ICP emission spectrometer,
the American LECO infrared carbon sulfur analyzer, the hydrogen
analyzer, the oxygen and nitrogen analyzer,the Swiss end harden
ability tester, the German Zeiss inverted microscope, the Japanese
CARTON stereo microscope, the 500J impact testing machine, the 500N
hydraulic universal tester, the water immersion flaw detector, the
radio element detector and so on.
