SAE 52100 Alloy Bearing Steel Round Bar Wear Resistant

SAE 52100 Alloy Bearing Steel Round Bar

Basic Info.

Model NO.

52100

Special Use

Wear Resistant Steel

Application

Die Steel Bar

Hardness

Annealed Hbs250 Max

Diameter

20mm~410mm or Any

Length

80mm~410mm or Any

Certificate

SGS ISO

Delivery Time

Within 7-10 Working Days

OEM

Acceptable

Transport Package

Wooden Box or Customer′s Request

Specification

20-400mm or any

Origin

Jiangsu, China

Product Description:
1. Hot rolled or Forged, condition annealing, black surface
2. Hardness: ≤ 255HBS;
3. Hot rolled technology: EAF+LF+VD
4. Ultrasonic test standard: SPE1921-GR3, CLASS D/D or E/E

Standard	Grade	Chemical composition(%)
		C	Si	Mn	Cr	Mo	V	Ni	W	Cu	Ti
GB	Gr15；45Gr	0.32-0.42	0.80-1.20	0.20-0.50	4.75-5.50	1.10-1.75	0.80-1.20	-	-	-	-
AISI	52100	0.30-0.40	0.801.20	0.20-0.40	4.75-5.50	1.25-1.75	0.80-1.20
JIS	SUJ2	0.35-0.42	0.80-1.20	0.20-0.50	4.80-5.50	1.00-1.50	0.80-1.15
DIN	1.3505	0.37-0.42	0.80-1.20	0.20-0.50	4.80-5.50	1.20-1.50	0.90-1.10

Size of 1.3505 Bearing steel
Round bar	Diameter(mm)	Length (mm)
	Max:800	Max: 9000
Plate	Thickness(mm)	Width (mm)	Length (mm)
	Max:800	Max:1000	Max:6500

Applications:
1. Diecasting mould(mold, fixed block, upper die, jet nozzle, nitride thimble ).

2. Extrusion die(mold, supporting member, choke blocks).

3. Hot press die. (aluminum, magnesium, copper alloy)

4. Parts, such as cold cutting, overlap, hot shears, wearable parts.

5. Important parts for aviation industry.

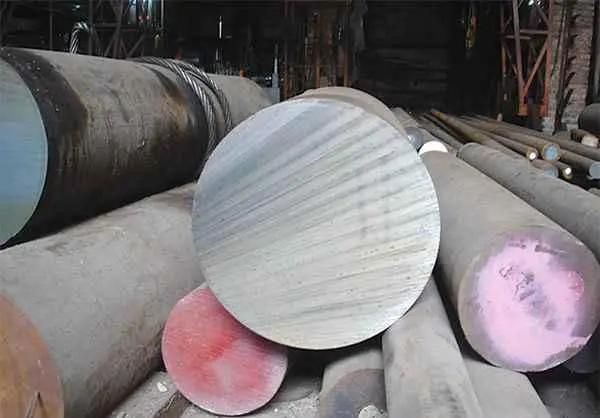

Pictures:
