DIN 41Cr4 Alloy Steel Black Peeled Surface Forged Steel Round Bars
The forged steel round bars have been used in all kinds of areas,
such as aviation,aerospace,navigation,nuclear energy,chemical
industry,
electronic information,achine manufacture, petrochemical,
automotive,instrument and meter, Communication ,transportation, and
medical instruments, etc.
Specifications:
Production Name | Forged Steel Round Bars |
| Main Grade | DIN 41Cr4 |
| Shape | Round/Square,etc. |
| Diameter | 80-1000mm |
| Length | 3000mm-10000mm |
| Hardness | Annealed (+A): max 207HB Treated to improve shearability (+S): max 255HB |
| Technique | Forged, hot rolled |
| Surface | Black, Rough Machined, Turned |
| Processing Service | EAF + LF + VD + Forged + Heat Treatment (optional) |
High strength, hardenability, good toughness, small deformation in
quenching, high temperature creep strength and lasting
strength.It is used for manufacturing forgings with higher strength
and larger quenched and tempered cross section than 35CrMo steel,
such as big gear for locomotive traction, supercharger drive gear,
rear axle, connecting rod and spring clamp with great load, and
also for drilling pipe joint and fishing tool for oil deep Wells
below 2000m.

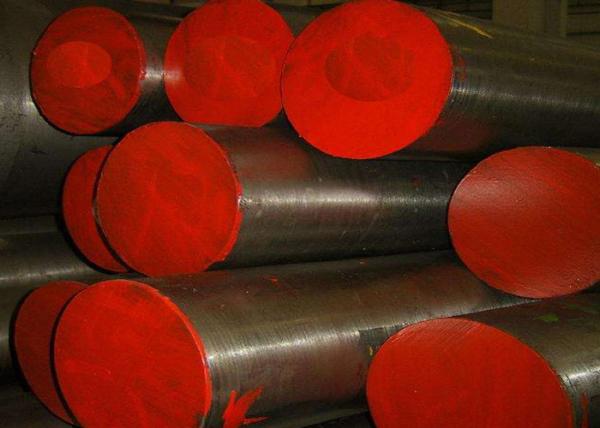

Forged Steel Round Bars Photos
Product Processing
Production Inspection
Our heat treatment center with complete product testing equipment,
for instance: the scanning electron micro sconezz(SEM).the
transmission electron microscope(TEM)the material testing machine.
the large-type metallurgical microscope,the endurance testing
machine,the IAS-4 image analyzer, the American ARL direct- reading
spectrometer, the American the electric ICP emission spectrometer,
the American LECO infrared carbon sulfur analyzer, the hydrogen
analyzer, the oxygen and nitrogen analyzer,the Swiss end harden
ability tester, the German Zeiss inverted microscope, the Japanese
CARTON stereo microscope, the 500J impact testing machine, the 500N
hydraulic universal tester, the water immersion flaw detector, the
radio element detector and so on.
